buz1 Single Wing Hinged Door buz2

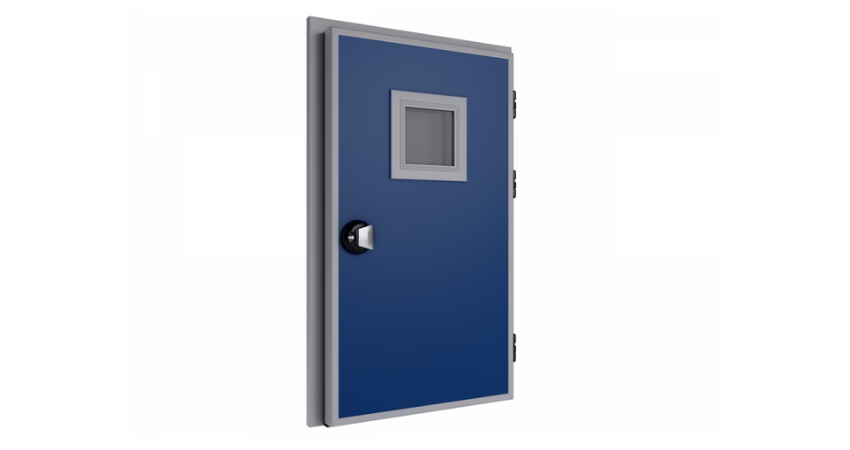

Single Wing Hinged Door

Single Wing Hinged Door

Have any Questions?

Our customer representative is available 24/7 to answer your questions.

+90 542 667 89 01
Single Wing Hinged Door Single Wing Hinged Door Single Wing Hinged Door Single Wing Hinged Door Single Wing Hinged Door
  • Hinged doors are basically divided into two. The doors of the rooms to be kept at 0⁰ and above temperatures are called the cold room door, and the doors of the rooms to be kept at 0⁰ temperatures are called the frozen storage room door. Single-wing hinged door and double-wing options are available. All our hinged doors can be equipped with automatic door closer, observation window, kick guard, etc., if desired. accessories can be added.

  • HINGED DOOR FRAME Hinged cold room door frames are produced in 2 different ways as PVC or anodized Aluminum. There is a single row of heating resistance inside the case in the aluminum cased hinged frozen storage room doors. Our hinged door frames are suitable for all kinds of hygienic washing.

  • HINGED DOOR LEAF Hinged cold room doors are available in 70 and 90mm thickness, and frozen storage room doors are available in 90, 120 and 150mm thickness wing options. Hinged cold storage door wings are produced as monoblock with 40-43 kg/m³ CFC-free polyurethane foam filling. In all our hinged doors, the frame of the wing is anodized aluminum. In all our hinged doors, there are support plates inside the wing for all the accessories on the wing. In hinged cold room doors, there is a single row of EPDM gaskets on the door leaf, and a double row of EPDM gaskets (except CBT9) in frozen room doors. There is a single row of heating resistance in the gasket in the hinged frozen room doors. Our hinged door wings are produced as 0.5 mm thick 130µ PVC coated galvanized sheet as standard. It can also be produced as 25µ RAL painted or A304 quality stainless sheet upon request. If desired, sheet thicknesses can also be produced in the range of 0.5 and 1.2 mm. Our hinged cold storage door wings are suitable for all kinds of hygienic washing.

  • HINGED DOOR SILL We have different options to suit your needs.

  • You can request technical drawings of our products from our technical department and request an exploration to make feasibility assessments. For more detailed information about our hinged doors, you can download our catalog or contact us.
